Overview

Export to Elemental allows you to convert your templates into Courier Elemental JSON format. This enables you to:
  • Use templates programmatically: Include exported Elemental JSON directly in /send API requests
  • Version control templates: Store template definitions as code in version control systems
  • Migrate to Elemental: Convert existing Designer templates to Elemental format
  • Template management: Create, update, and manage templates via API using exported JSON
  • Customization: Modify exported JSON to add advanced features like conditionals, loops, or custom logic
Export to Elemental is available in both Courier Design Studio 2.0 (v2) and the legacy Designer (v1). You can export templates from either designer to Elemental format.

​
Why Export to Elemental?

Benefits of exporting:
  1. API-First Workflows: Use templates in API calls without managing them in the Designer UI
  2. Version Control: Track template changes in Git alongside your codebase
  3. Programmatic Management: Create, update, and manage templates via the Templates API
  4. Advanced Features: Add control flow (if, loop, ref), complex layouts, or custom logic that may not be available in the Designer UI
  5. Reproducibility: Define templates as code for consistent deployments across environments
  6. Collaboration: Share template definitions as JSON files with your team

​
How to Export

  1. Open your template in Courier Design Studio
  2. Click the dropdown arrow next to “Publish”
  3. Select “Export to Elemental”
  4. Copy the JSON output containing the Elemental syntax
Export to Elemental Dropdown

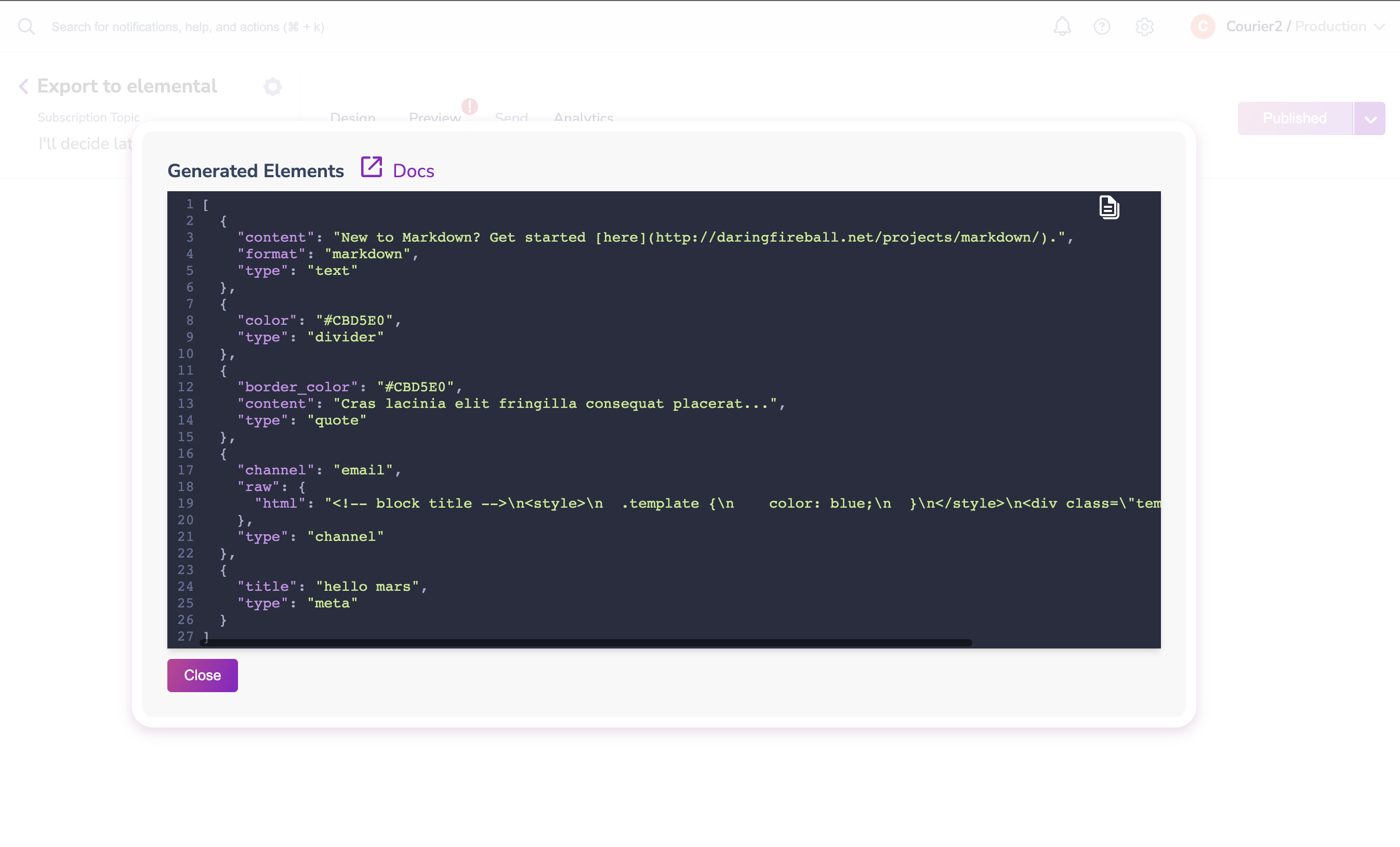

Export to Elemental Output JSON

​
Using Exported Elemental JSON

The exported Elemental JSON follows the standard Elemental format with version and elements fields. You can use it in several ways:

​
In Send API Requests

Include the exported JSON directly in the content field of your /send API request:
curl -X POST https://api.courier.com/send \
  -H "Authorization: Bearer $COURIER_AUTH_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "message": {
      "to": { "email": "[email protected]" },
      "content": {
        "version": "2022-01-01",
        "elements": [
          {
            "type": "meta",
            "title": "Welcome!"
          },
          {
            "type": "text",
            "content": "Thanks for signing up, {{name}}"
          }
        ]
      },
      "data": { "name": "Alex" }
    }
  }'

​
In Template API Requests

Create or update templates using the exported JSON via the Templates API:
{
  "name": "Welcome Email",
  "content": {
    "version": "2022-01-01",
    "elements": [
      // ... exported Elemental JSON
    ]
  }
}

​
Customizing Exported JSON

After exporting, you can enhance the JSON with advanced Elemental features: Add conditional logic:
{
  "type": "text",
  "content": "Premium feature available!",
  "if": "data.user_tier === 'premium'"
}
Add loops:
{
  "type": "group",
  "loop": "data.products",
  "elements": [
    {
      "type": "text",
      "content": "{{$.item.name}} - {{$.item.price}}"
    }
  ]
}
Add channel-specific content:
{
  "type": "text",
  "content": "Detailed email content",
  "channels": ["email"]
}
For more information on advanced Elemental features, see the Control Flow documentation and Elements Reference.

​
Supported Block Types

The following Designer Studio block types can be exported to Elemental:
Designer BlockElemental Node Type(s)Notes
TexttextPlain text content
ImageimageImage elements with src, alt_text, etc.
ActionactionButtons and links
DividerdividerHorizontal dividers
Markdowntext (format: markdown)Markdown-formatted text
QuotequoteQuote blocks
TemplatehtmlRaw HTML content

​
Limitations

Export LimitationsThe following features have limited or no support when exporting:
  • List blocks: Not directly supported in export
  • Jsonnet blocks: Not supported in export
  • Block-level locales: Locale definitions at the block level are not exported
  • Complex nested structures: Some deeply nested Designer layouts may not export perfectly
  • Custom styling: Some Designer-specific styling may not translate directly to Elemental
Workarounds:
  • For lists: Use Elemental list elements directly in your exported JSON
  • For locales: Add locale definitions manually after export using Elemental’s locales property
  • For complex layouts: Review and adjust exported JSON structure as needed

​
Best Practices

  1. Review exported JSON: Always review the exported JSON to ensure it matches your Designer template
  2. Test before deploying: Test exported templates with sample data before using in production
  3. Version control: Store exported JSON in version control for tracking changes
  4. Enhance after export: Add advanced features (conditionals, loops) after export if needed
  5. Document customizations: Document any manual changes you make to exported JSON
  6. Keep Designer in sync: If you make changes to exported JSON, consider updating the Designer template as well
