Automations that include delays or long-running steps can be cancelled before they finish. This is useful when a user takes an action that makes the rest of the automation irrelevant; for example, completing onboarding before a reminder fires, or upgrading their plan before a trial-expiry sequence reaches the next send. Cancellation works in two parts: you set a cancellation token on the automation template, and later invoke a separate cancel step with the resolved token value.

​
Prerequisites

​
Set a Cancellation Token

1

Open Automation configuration

In the Automations Designer, click the gear icon in the top-right corner, then select Automation configuration.
2

Enter a token expression

The Cancellation Token field is a freeform text input. Whatever you enter gets evaluated against the automation’s run context at invoke time.For a simple per-user token, enter:
refs.data.user_id
When the automation is invoked with "data": {"user_id": "user_123"}, the token resolves to the literal string user_123 for that run.

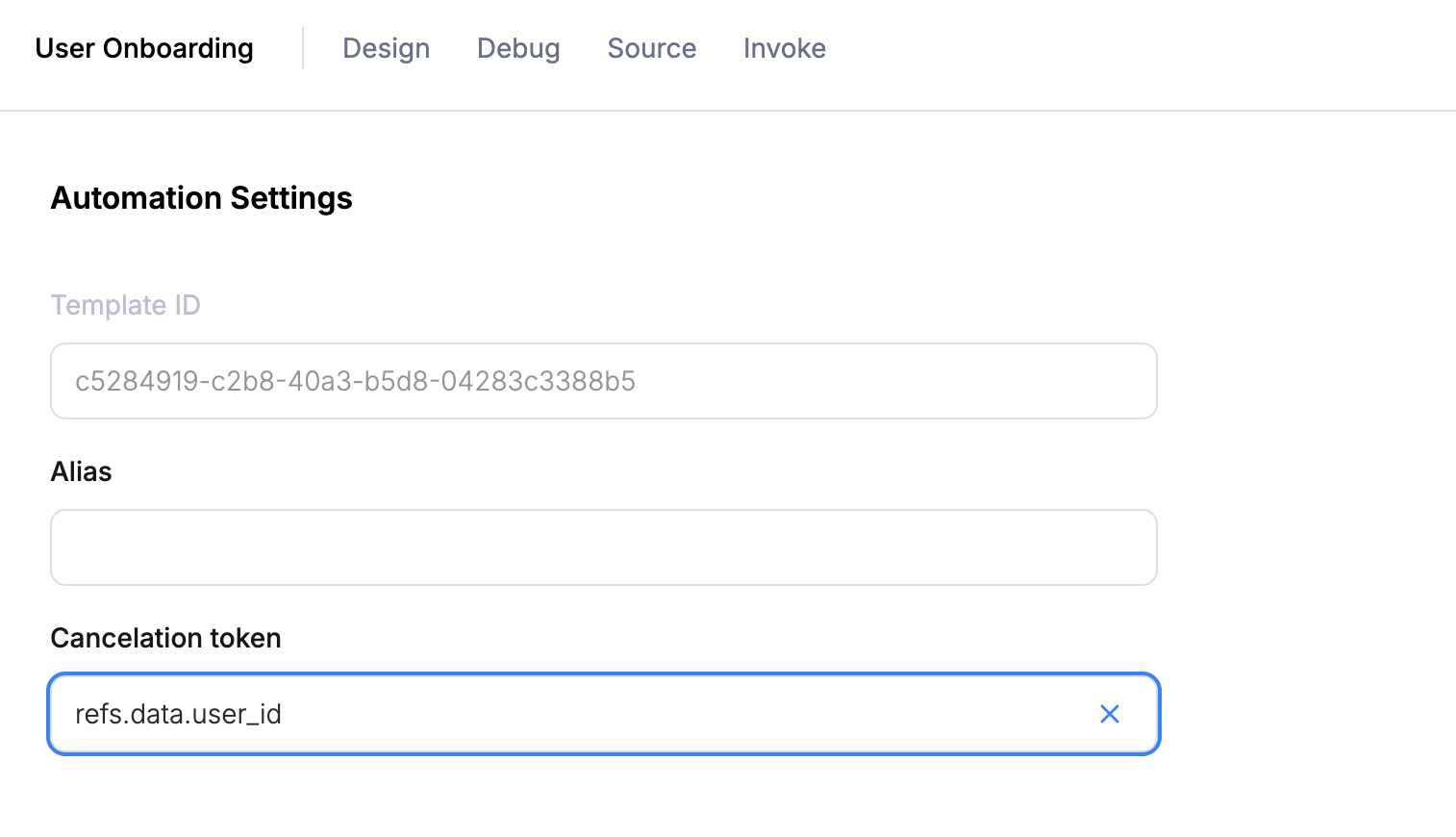

Cancellation token configuration
3

Publish

Publish the automation. The token is now active for all future invocations.

​
Cancel from Your Backend

When your app detects that the automation should stop (e.g. the user completed onboarding), send an ad-hoc automation with a cancel step. The cancelation_token value must be the resolved string; your backend constructs it the same way.
curl -X POST https://api.courier.com/automations/invoke \
  -H "Authorization: Bearer $COURIER_AUTH_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "automation": {
      "steps": [
        {
          "action": "cancel",
          "cancelation_token": "user_123"
        }
      ]
    }
  }'
All running automations whose resolved token matches user_123 are cancelled. Any steps that haven’t executed yet (pending delays, queued sends) are skipped. If the automation already finished, the cancel is a no-op. You can also cancel from the Courier UI; see Canceling From the UI.

​
Token Syntax Reference

The cancellation token field supports two resolution modes. The backend checks them in order:

​
1. Refs accessor

If the entire string starts with refs., Courier navigates into the run context and returns the raw value.
You typeRun dataResolves to
refs.data.user_id{"user_id": "user_123"}user_123
refs.data.plan{"plan": "pro"}pro
refs.profile.emailprofile has email: "j@example.com"j@example.com
This only works when the entire string starts with refs.. Prefixing it with anything else (e.g. onboarding-refs.data.user_id) breaks the pattern and the whole string is treated as a literal.

​
2. JavaScript interpolation

If the string is wrapped in the interpolation delimiters (a dollar sign followed by an opening brace at the start, and a closing brace at the end), Courier strips the wrapper and evaluates the inner content as JavaScript in a sandboxed VM. The sandbox exposes the following variables from the run context:
VariableSource
dataThe data object passed at invoke time
profileThe profile object passed at invoke time
refs.dataSame as data (alias for convenience)
refs.profileSame as profile (alias for convenience)
The inner content is real JavaScript, so you can use template literals, string concatenation, and simple expressions. See the examples below. In each case, the outer wrapper is Courier’s interpolation marker, and everything inside is evaluated as JS. Prefixed token (most common for compound keys) - resolves to onboarding-user_123: Combining multiple fields - resolves to e.g. trial-expiry-user_456: String concatenation - resolves to e.g. user_123-tenant_abc:
The VM has a 300ms timeout, no async support, and no access to eval or WebAssembly. Keep expressions simple.

​
Scoping Tokens

With a simple token like refs.data.user_id, a cancel targets every running automation for that user across all templates. If you have multiple automations that could share the same user ID (onboarding, trial expiry, feature adoption), use a compound token to scope cancellation to a specific automation. A good pattern is to include the automation name as a static prefix combined with the user ID. For example:
  • Onboarding reminder - use a prefix like onboarding- combined with data.user_id, resolving to onboarding-user_123
  • Trial expiry - use a prefix like trial-expiry- combined with data.user_id, resolving to trial-expiry-user_123
  • Feature adoption - combine data.feature and data.user_id, resolving to something like feature-dashboards-user_123
Now cancelling onboarding-user_123 only stops the onboarding automation, not the trial expiry one.
If you run into issues formatting a compound cancellation token, reach out to Courier support for help.

​
